6 DOF Robot Arm Kit - Educational Manipulator for Arduino

6 DOF Robot Arm Kit - Educational Manipulator for Arduino

$208.95
$208.95 $208.95
SAVE 0% Sold out

add_shopping_cart

-

Ordered

local_shipping

- - -

Order Ready

redeem

- - -

Delivered

Overview

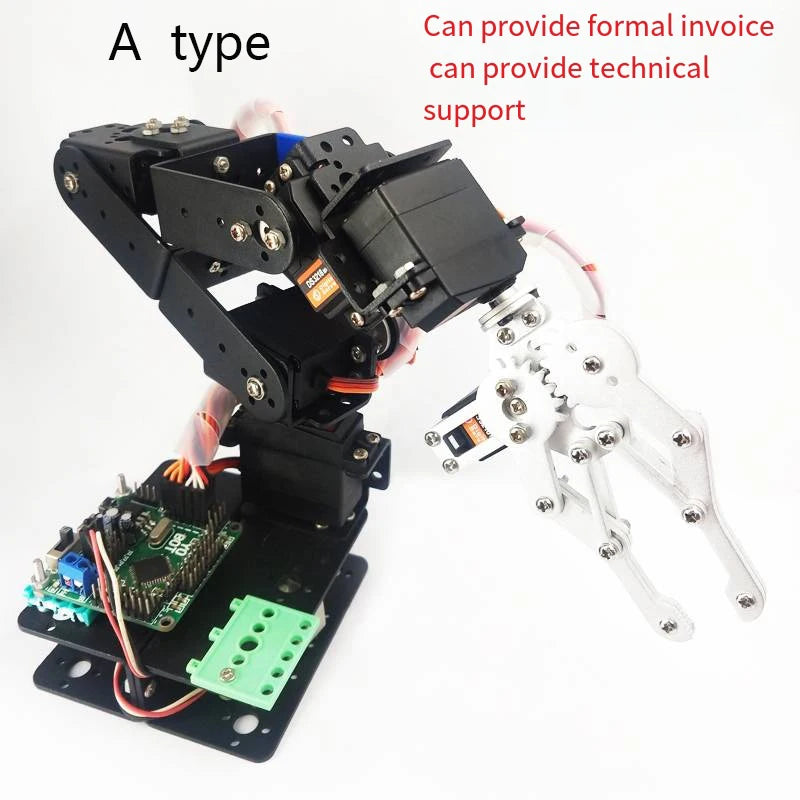

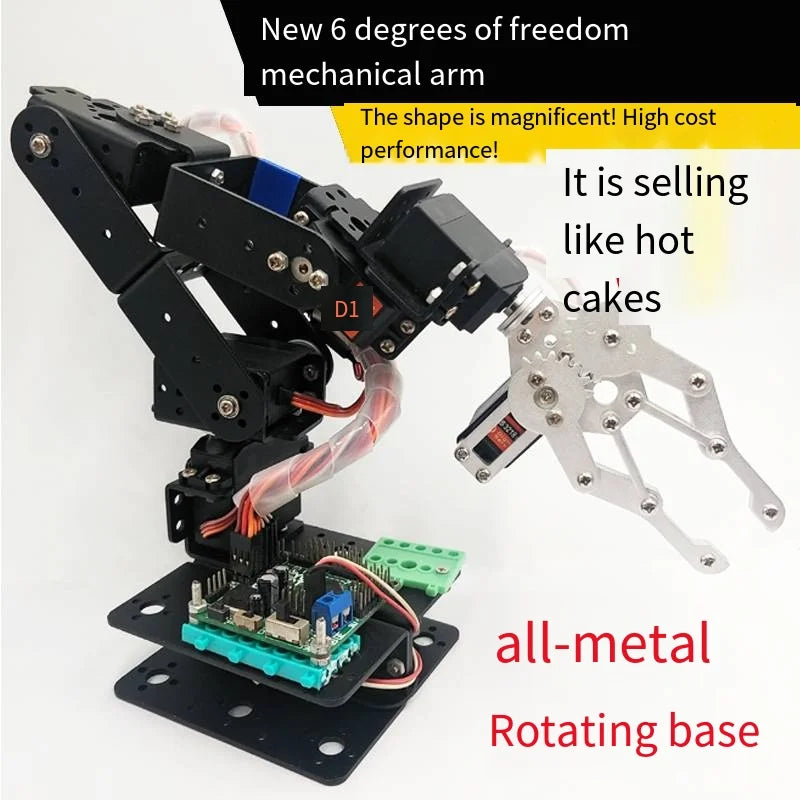

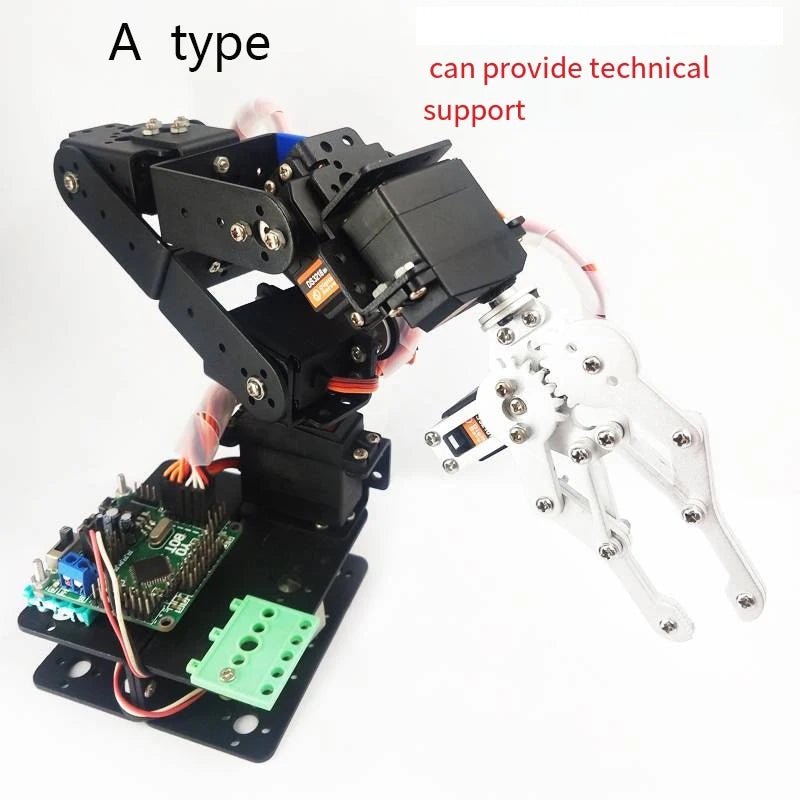

This 6-DOF educational robot arm manipulator is the definitive Arduino robotics platform. With six degrees of freedom, it can reach any point in its workspace with any orientation — just like an industrial robot. Available in 14 variants from basic frame kits to fully assembled units with Arduino controllers.

⚡ Safety Notice

Six servo motors require external power supply (7.4V 2A minimum). Do NOT power from Arduino USB port alone. Keep workspace clear during operation — arm can move unexpectedly during programming. Disconnect power before adjusting linkages.

Key Features

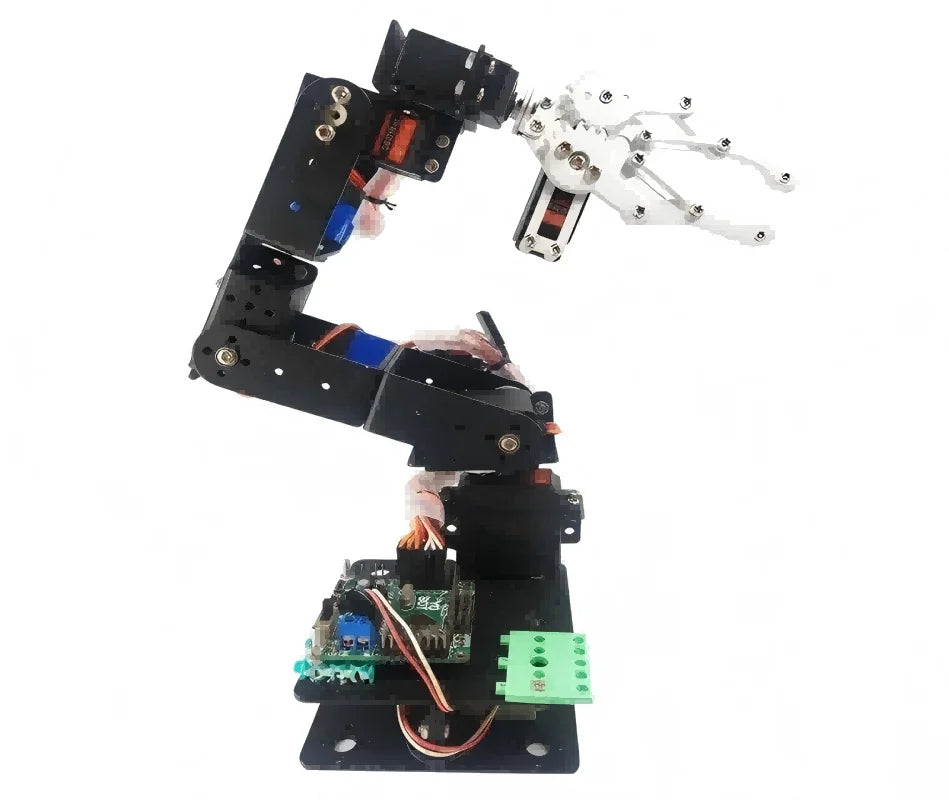

  • 6 Degrees of Freedom — Full articulation: base rotation, shoulder, elbow, wrist pitch, wrist roll, gripper
  • Arduino Integration — Direct servo control from Arduino Uno/Mega
  • 14 Variant Options — Choose your configuration: frame only, with servos, or fully assembled
  • All-Metal Construction — Aluminum alloy frame for precision and durability
  • Educational Platform — Learn kinematics, inverse kinematics, and trajectory planning

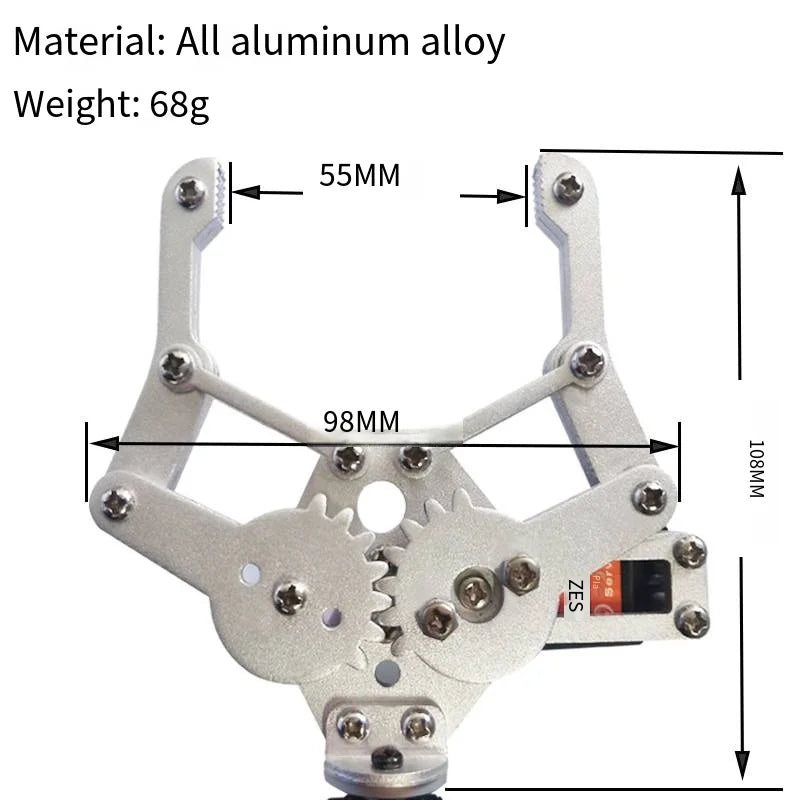

  • Gripper Included — End effector for pick-and-place operations

Technical Specifications

DOF 6 (base + shoulder + elbow + 2 wrist + gripper)
Material Aluminum Alloy

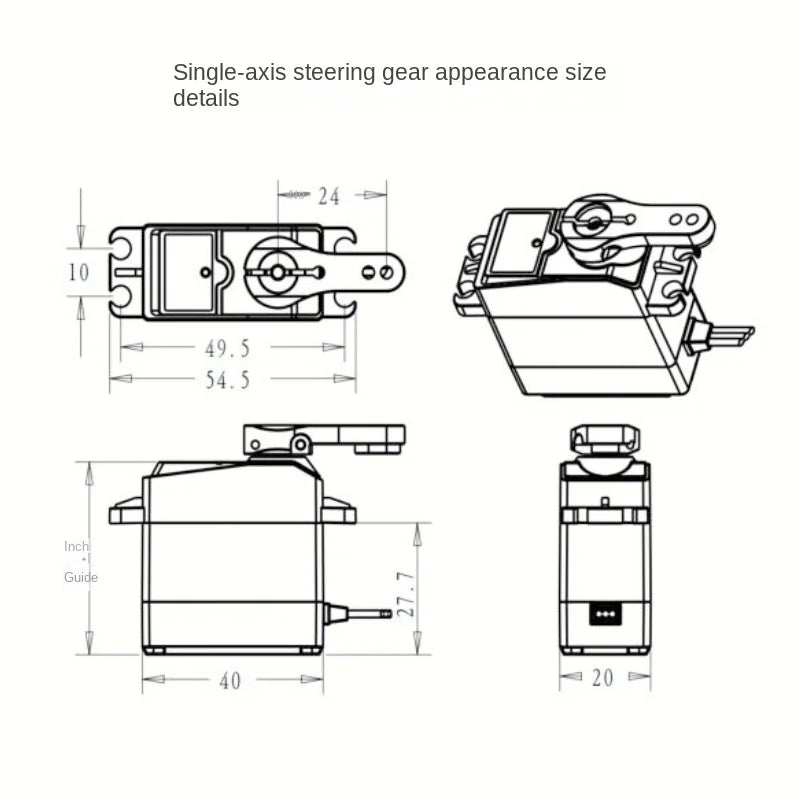

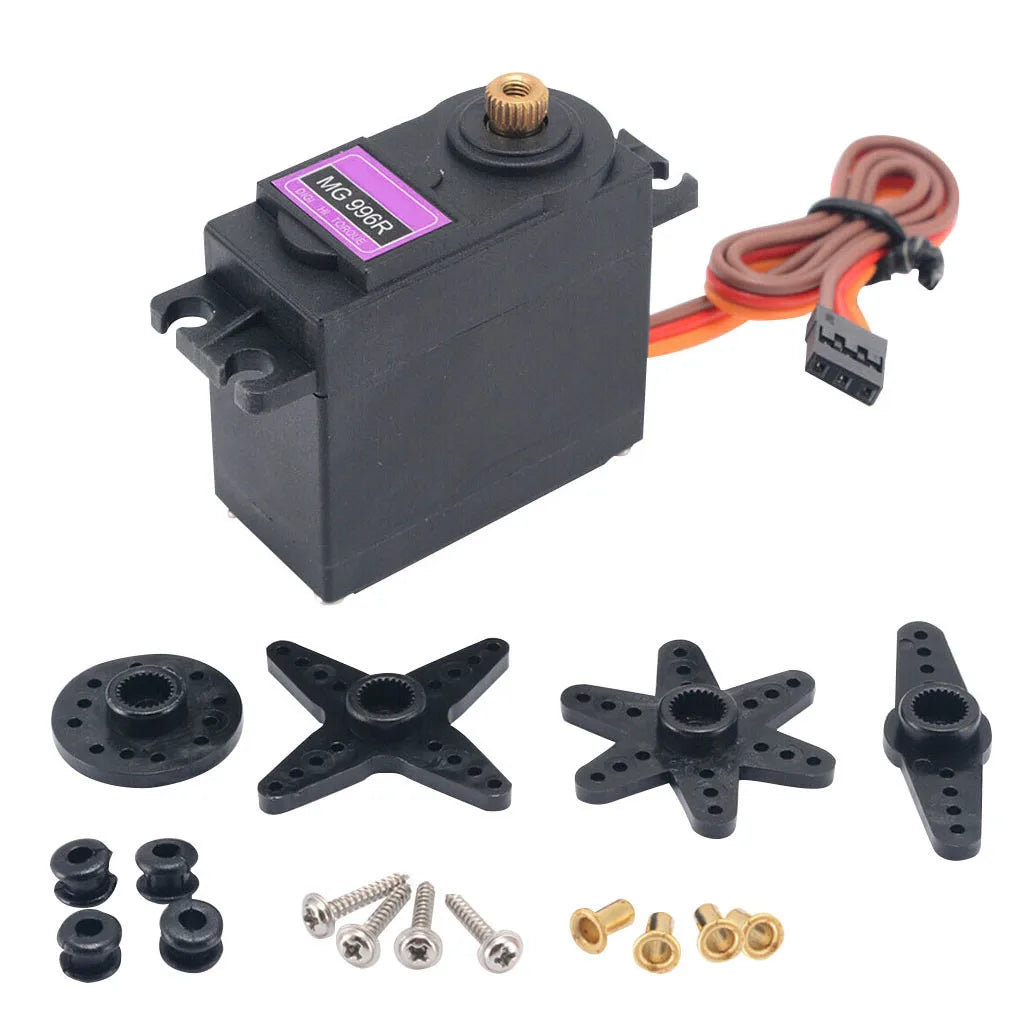

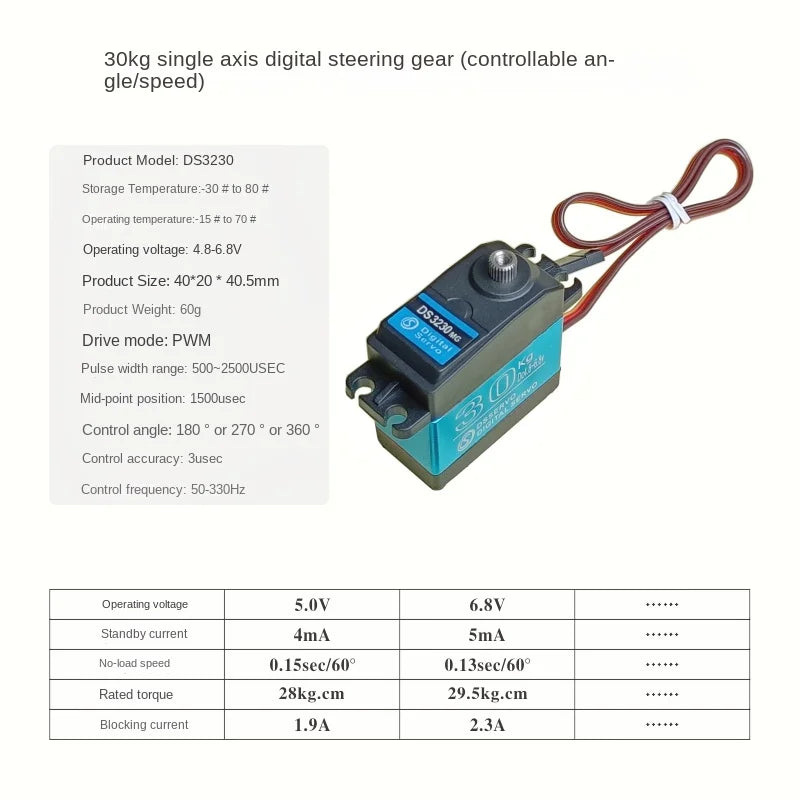

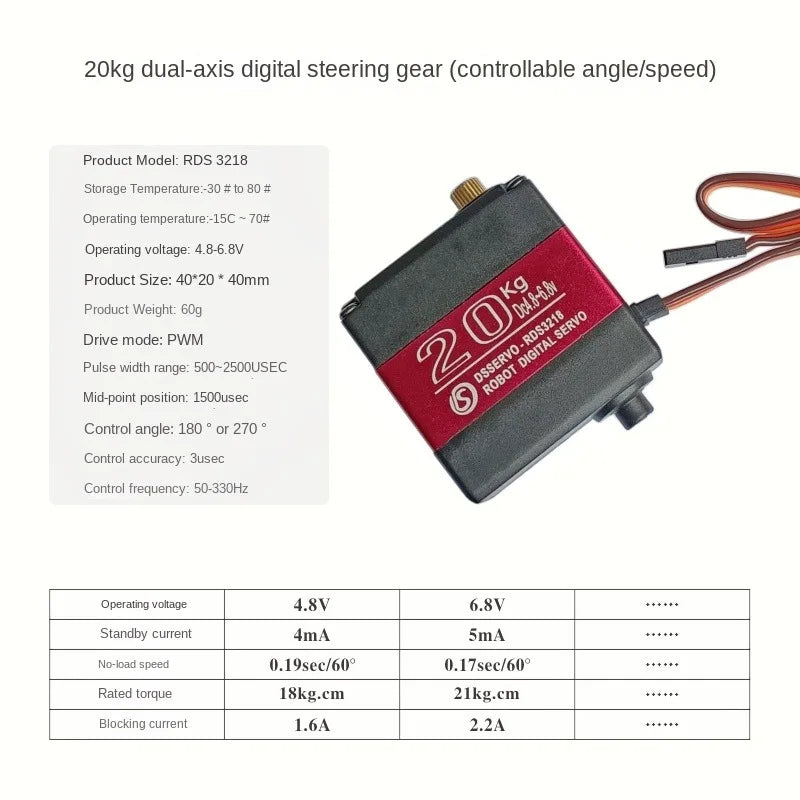

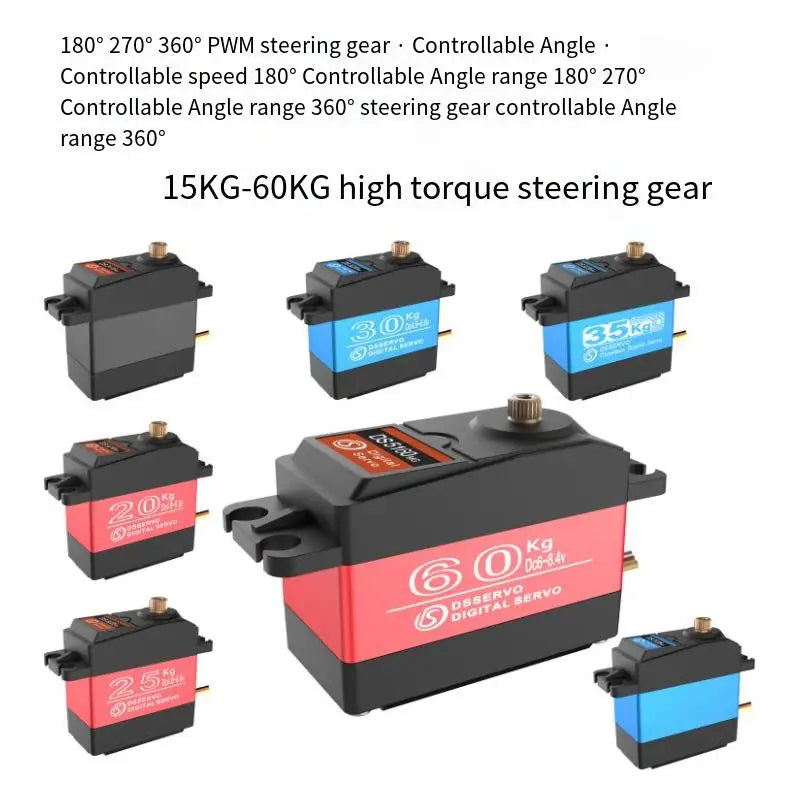

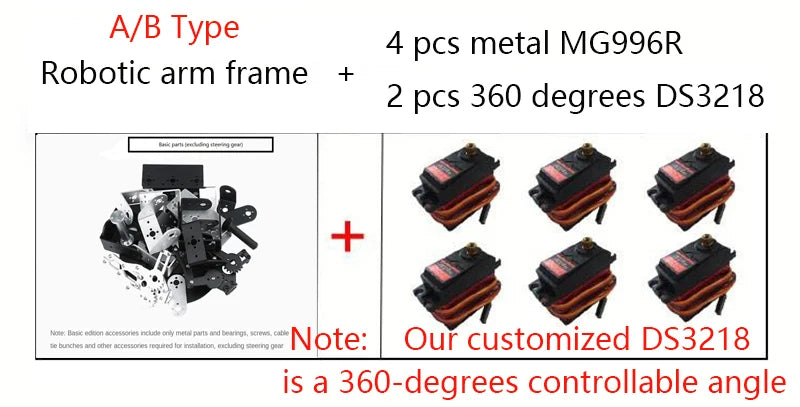

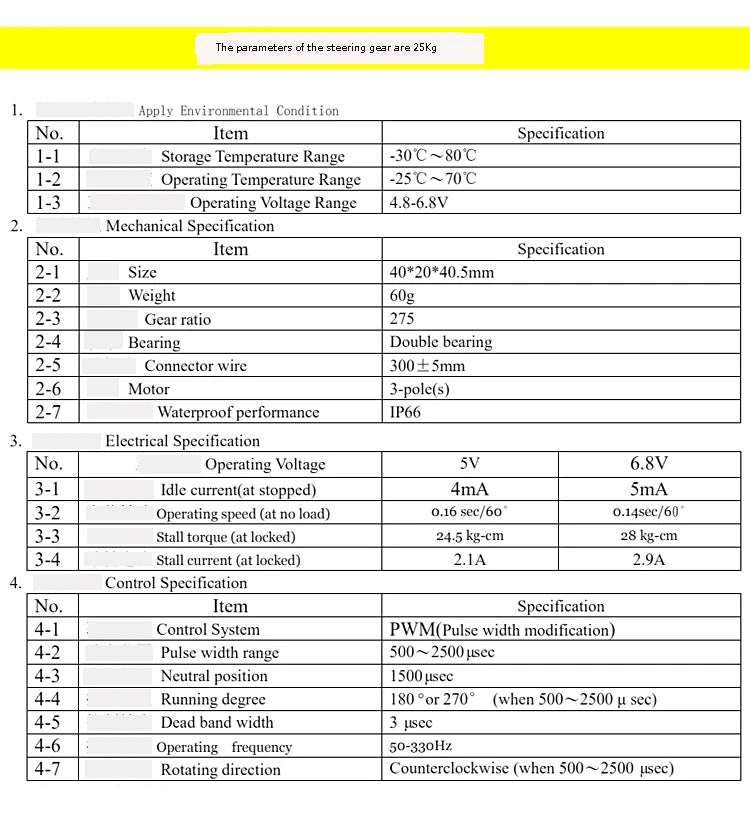

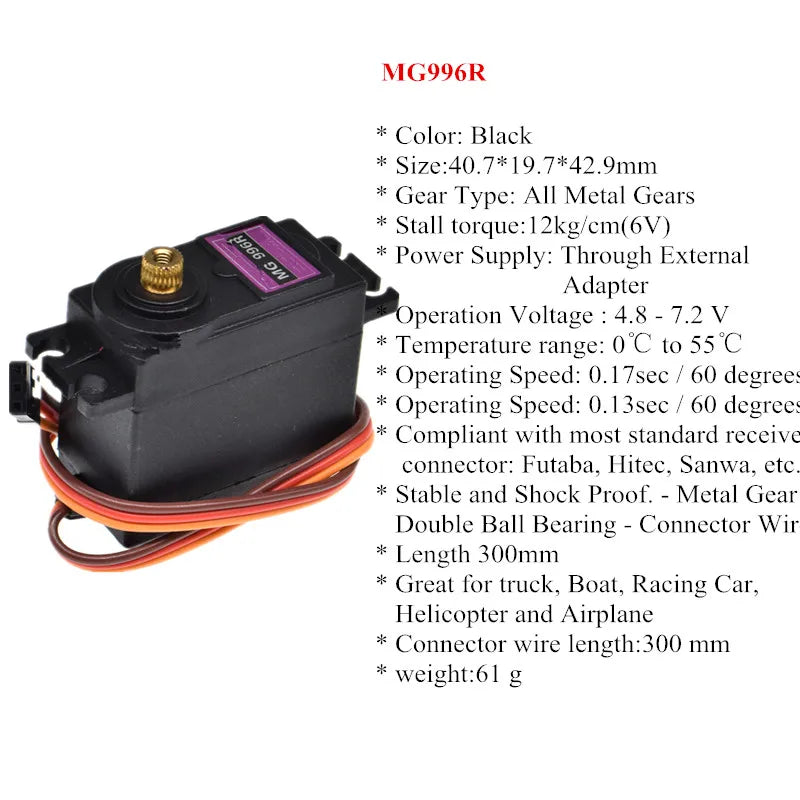

Motor 6x Servo (MG996R / MG90S mix)

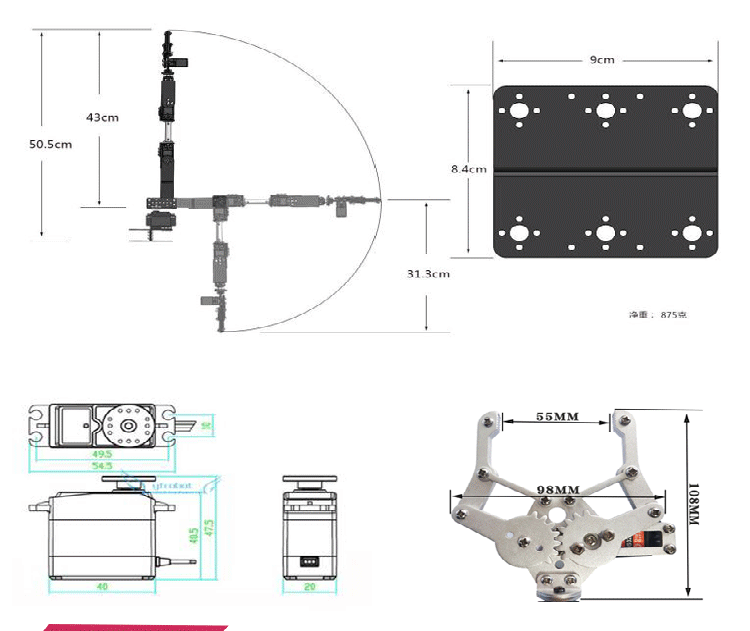

Reach ~350mm
Payload ~200-500g
Voltage 5V-7.4V DC
Controller Arduino Uno/Mega (select variants)
Variants 14 configurations

Quick Start Code

// 6DOF Manipulator — Arduino Quick Start #include <Servo.h> Servo joint1; Servo joint2; Servo joint3; // ... 6 servos total void setup() { joint1.attach(3); joint2.attach(4); joint3.attach(5); } void loop() { joint1.write(90); // Center position delay(1000); joint1.write(45); // Move to 45° delay(1000); }

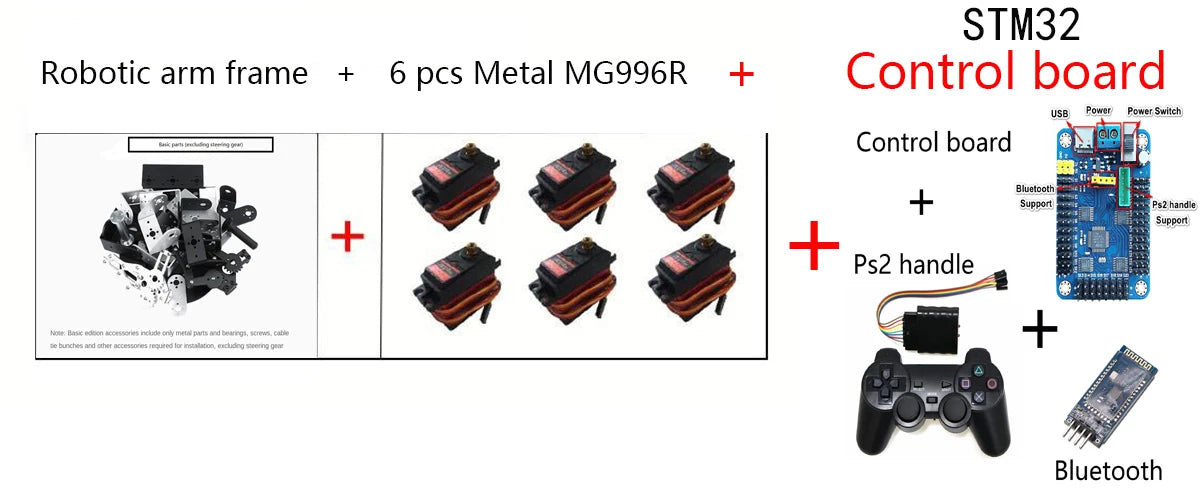

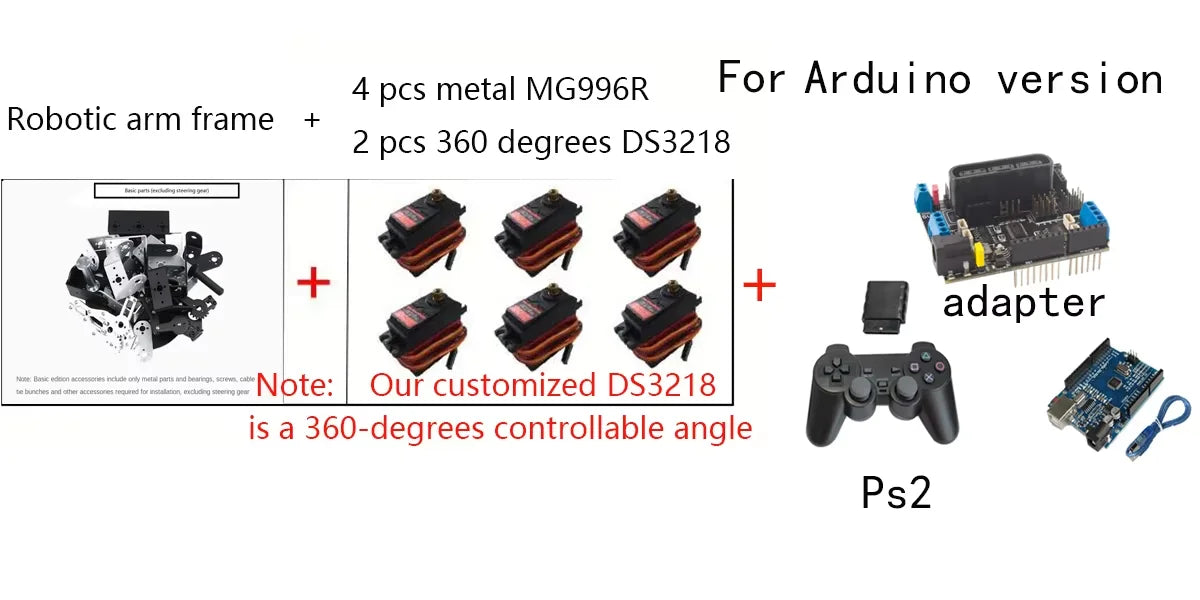

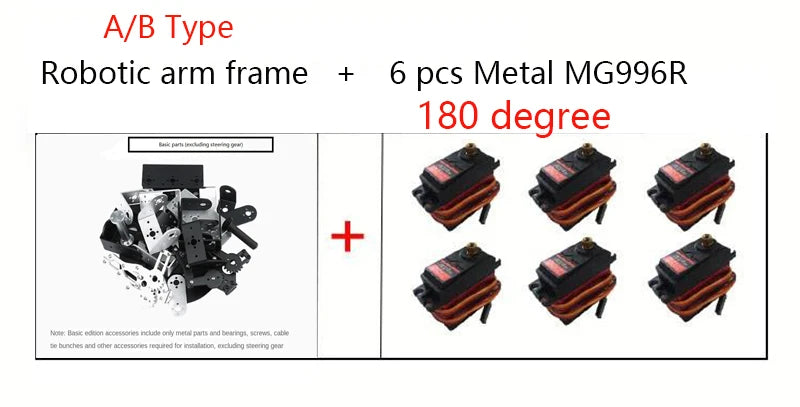

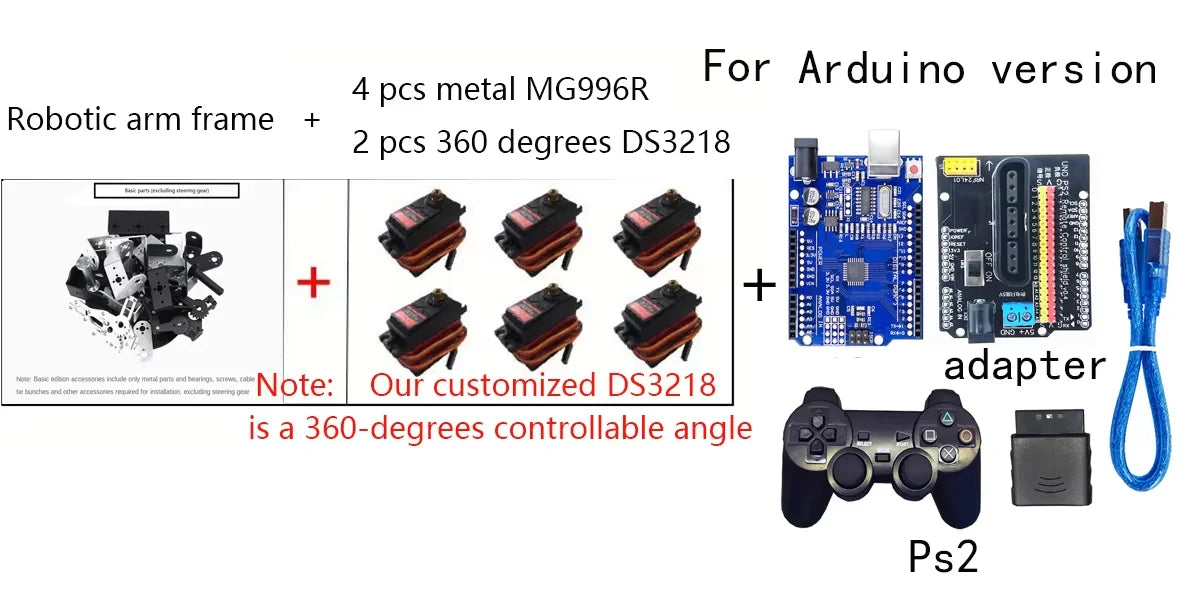

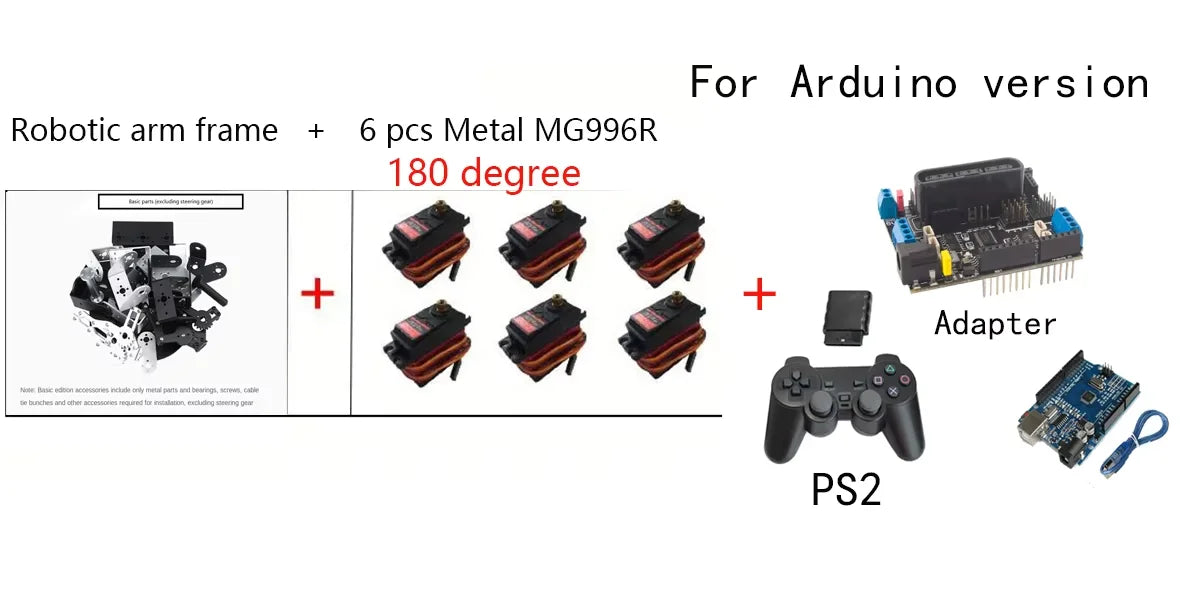

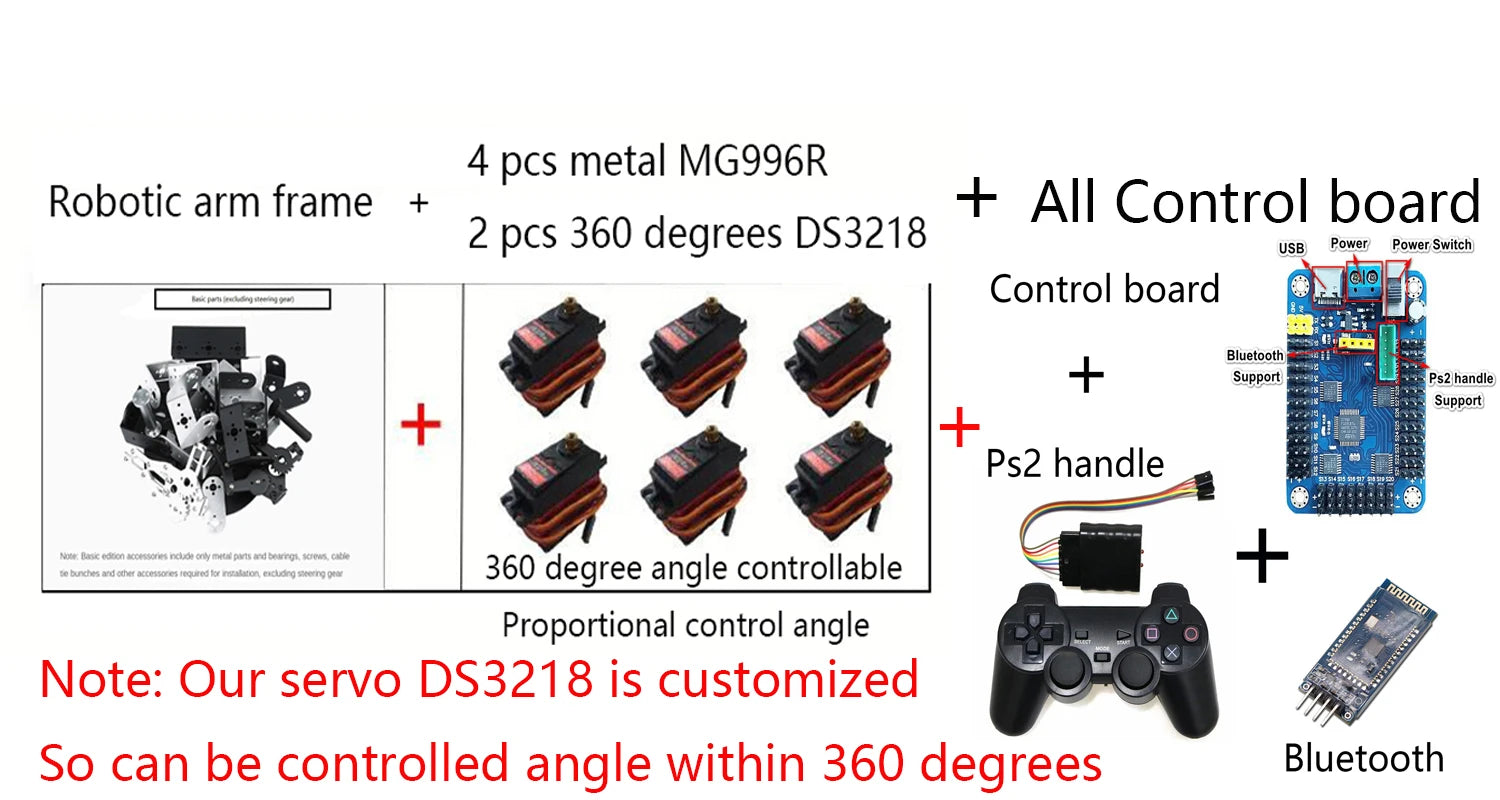

Package Contents

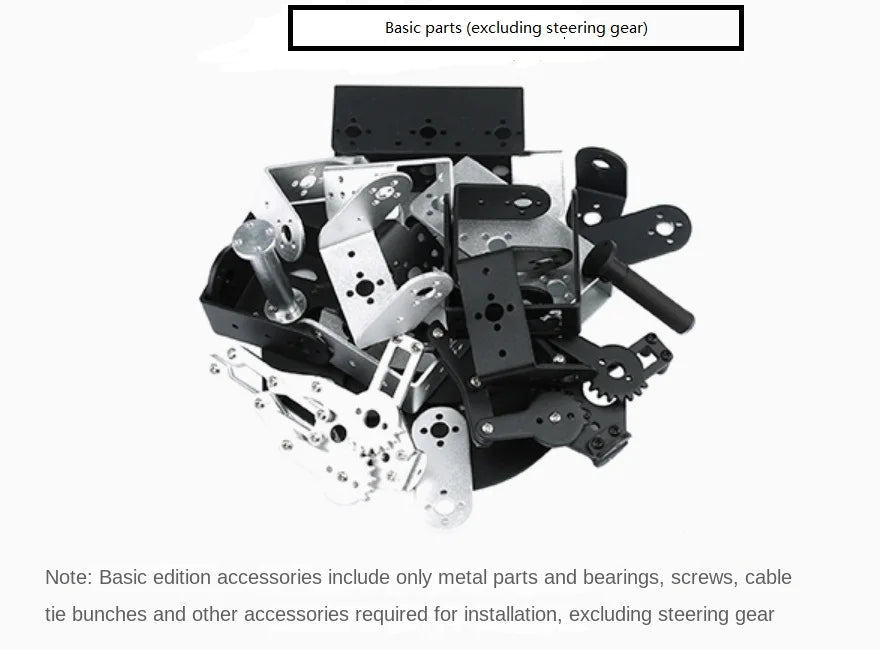

  • Aluminum alloy arm frame

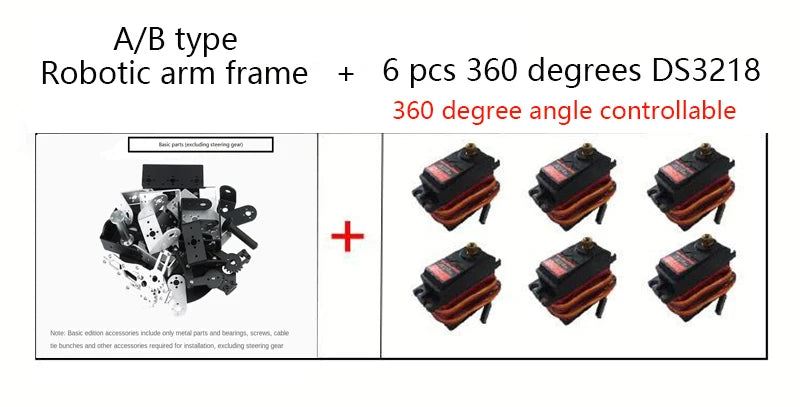

  • Servo motors (variant dependent)

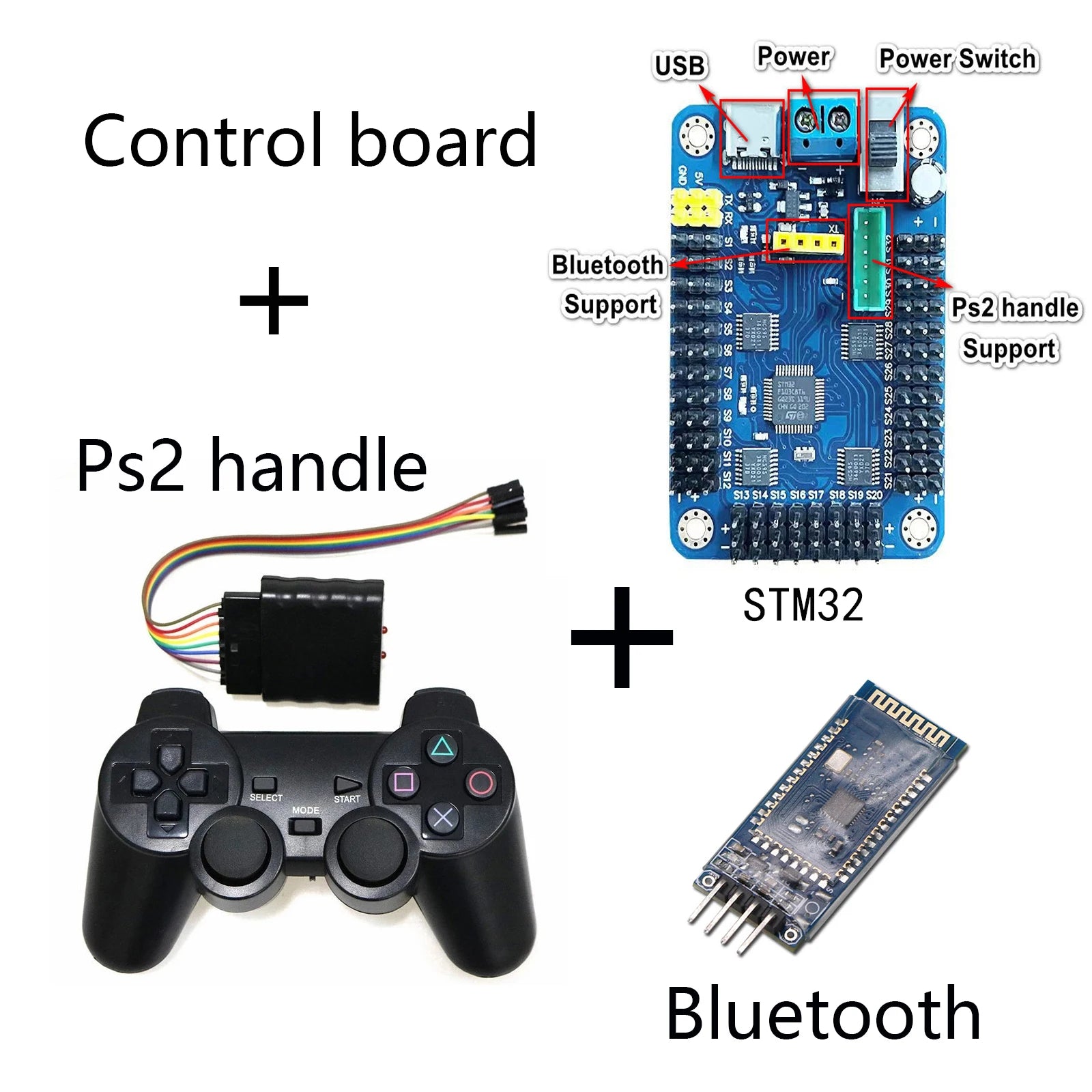

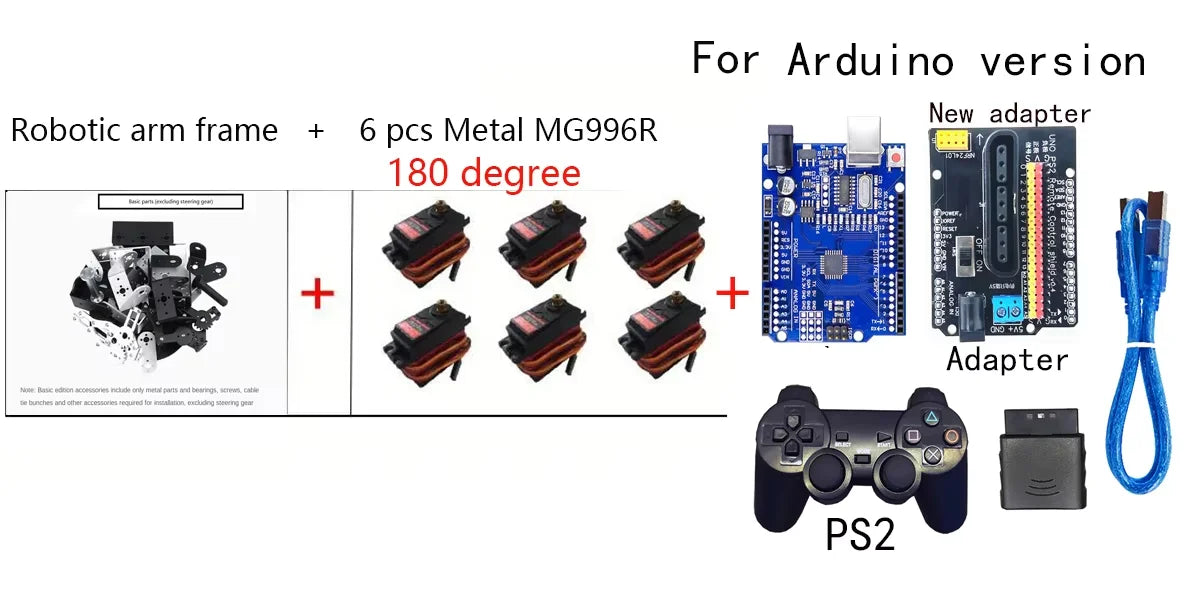

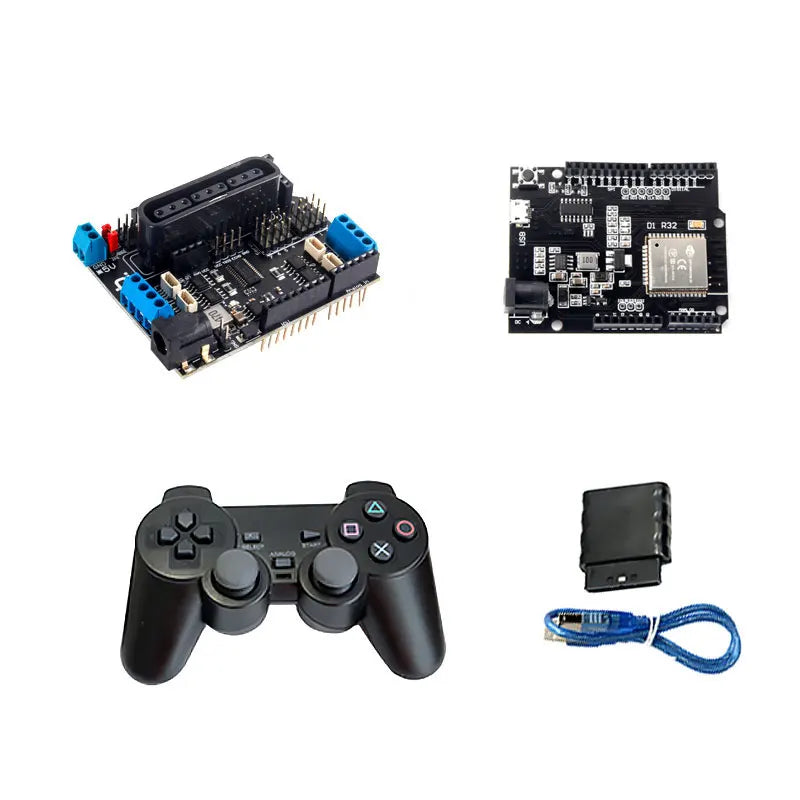

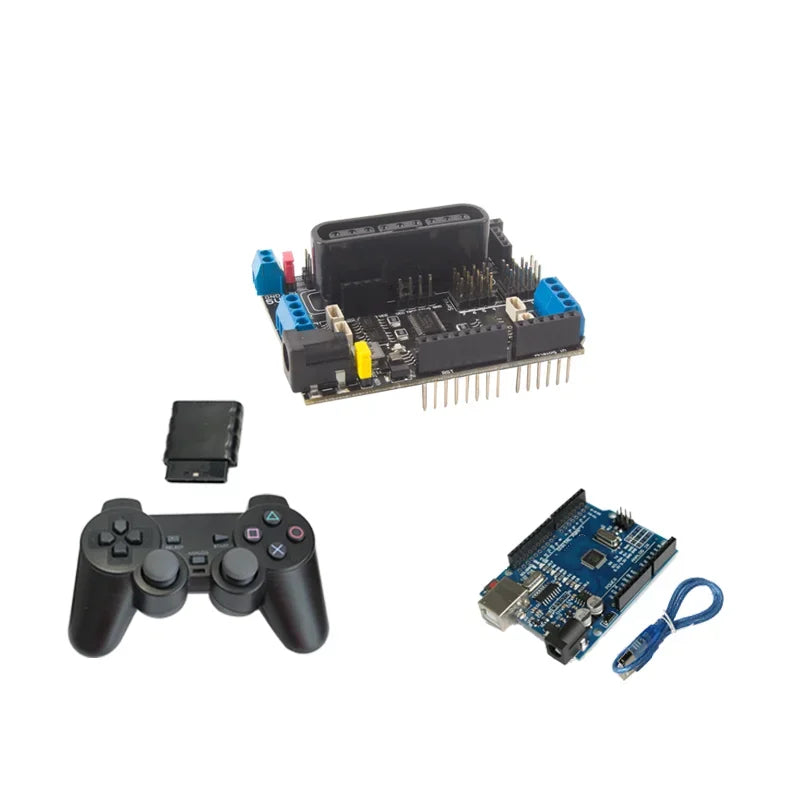

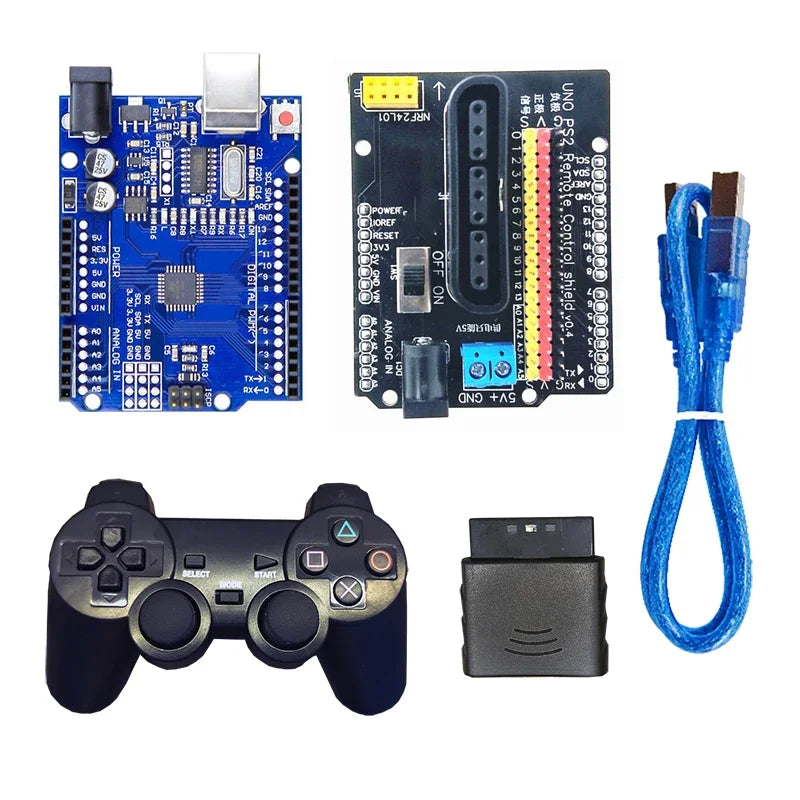

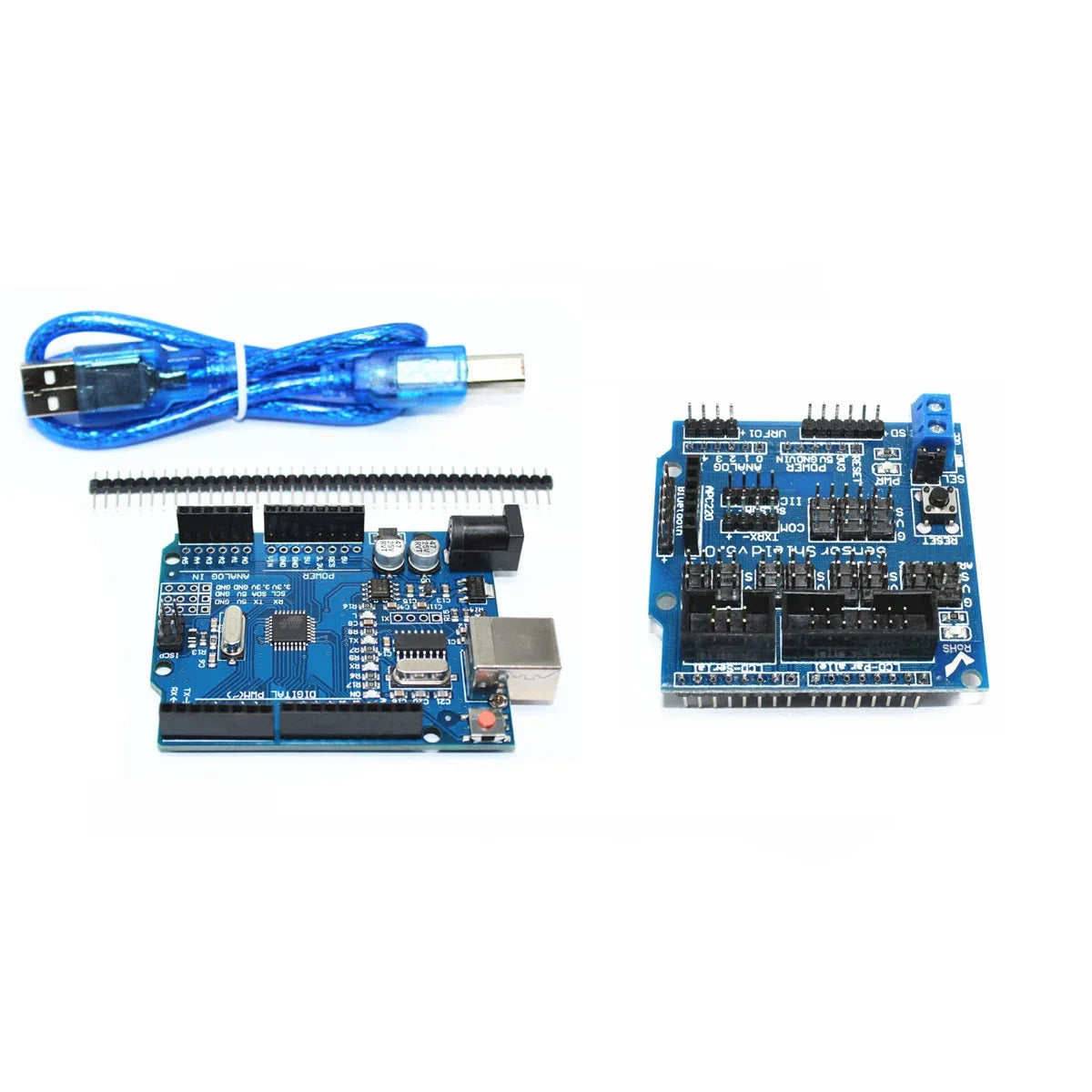

  • Arduino controller (variant dependent)
  • Gripper attachment
  • All mounting hardware
  • USB cable and power connector

Who Is This For?

Built for Arduino enthusiasts, engineering students learning robot kinematics, STEM educators teaching automation, and hobbyists ready for a mid-level challenge.

Shipping & Returns

Free US shipping on orders over $49. All orders ship within 1-3 business days with full tracking. International shipping available to Canada, Australia, New Zealand, and Europe. 30-day money-back guarantee on all kits.

settings

Technical Specifications

See product description above for full specs.

inventory_2

What's in the Box

See product description above for complete parts list.

local_shipping

Shipping & Returns

Free US shipping on orders over $49. All orders ship within 1-3 business days with full tracking. International shipping available to Canada, Australia, New Zealand, and Europe. Not satisfied? Return unused items within 30 days for a full refund.

  • Share positive thoughts and feedback from your customer.

    Author

  • Share positive thoughts and feedback from your customer.

    Author

  • Share positive thoughts and feedback from your customer.

    Author

    6 DOF Robot Arm Kit - Educational Manipulator for Arduino

    $208.95
    $208.95 $208.95
    SAVE 0% Sold out
    View full details

    build
    Icon with text

    CNC-machined aluminum alloy — not plastic

    code
    Icon with text

    Works with Arduino, RPi, and ESP32

    verified
    Icon with text

    No questions asked money-back guarantee

    Collapsible content

    check_box

    Do I need prior experience to build this?

    Most of our kits include step-by-step assembly instructions. Beginner kits (1-4 DOF) require no prior experience. Advanced kits (6-7 DOF) benefit from basic electronics knowledge.

    check_box

    Is an Arduino board included?

    Arduino boards are included with select variants. Check the variant options on each product page. All kits are compatible with Arduino Uno, Mega, and Nano.

    check_box

    How long does assembly take?

    Beginner kits: 1-2 hours. Mid-range kits: 2-4 hours. Advanced/professional kits: 4-8 hours. This is part of the learning experience!

    check_box

    What tools do I need?

    Most kits include the necessary hardware. You may need a small Phillips screwdriver and hex wrench set (often included). A soldering iron is NOT required for most kits.

    check_box

    Can I return it if I cannot build it?

    Yes! We offer a 30-day money-back guarantee on all kits. If you are not satisfied for any reason, contact us for a full refund.
